1Amp 1000V High Efficiency Rectifier Surface Mount Diode SOD-123FL

Name: 1Amp 1000V High Efficiency Rectifier Surface Mount Diode SOD123FL
Brand: Huixin
Price: 1 USD

Brand Name : Huixin

Model Number : US1MFL SOD-123FL

Certification : ISO14001 ISO9001 ISO/TS16949 UL

Place of Origin : China

MOQ : 3000 PCS

Price : Negotiable

Payment Terms : T/T, Paypal, Cash

Supply Ability : 1 billion pieces/ Month

Delivery Time : 2-4Weeks

Packaging Details : 3000pcs/reel/box

Type : High Efficiency Rectifiers

Part Number : US1AFL thru US1MFL

VRRM : 50 to 1000 Volts

IF : 1A

Material : Silicon

TRR : 75ns

Weight : 0.02 Grams

MPQ : 3000PCS

Contact Now

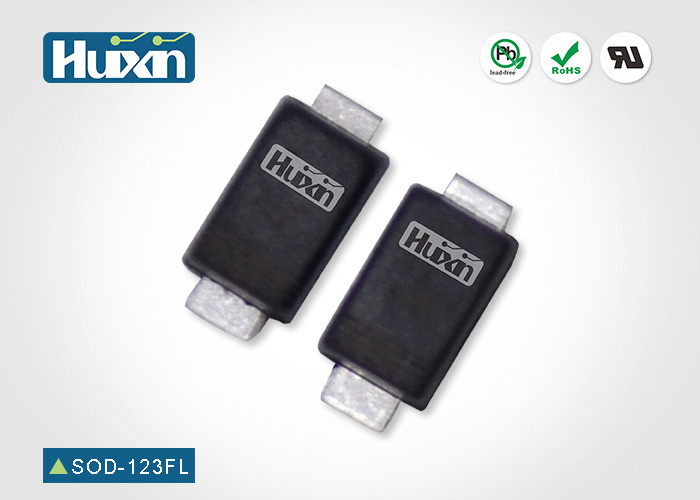

Surface Mount High Efficiency Rectifiers 1.0Amp 1000V SOD-123FL

1Amp 1000V High Efficiency Rectifier Surface Mount Diode SOD-123FL

US1A~US1M SOD-123FL Datasheet.pdf

Features:

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
Idea for printed circuit board
Glass passivated Junction chip
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed

Mechanical Data:

Case : JEDEC SOD123FL molded plastic body
Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
Polarity : Color band denotes cathode end
Mounting Position : Any
Weight : 0.0007ounce, 0.02 grams

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter		SYMBOLS	US1AFL	US1BFL	US1DFL	US1GFL	US1JFL	US1KFL	US1MFL	UNITS

Maximum Repetitive Peak Reverse Voltage		VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS Voltage		VRMS	35	70	140	280	420	560	700	Volts
Maximum DC Blocking Voltage		VDC	50	100	200	400	600	800	1000	Volts
Maximum Average Forward Rectifier Current at TL=55°C		IF(AV)	1							Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load		IFSM	30							Amps
Maximum Instantaneous Forward Voltage at 1A		VF	1			1.4	1.7			Volts
Maximum DC Reverse Current at rated DC blocking voltage	TA=25°C	IR	5							μA
	TA=125°C		500
Maximum Reverse Recovery Time		Trr	50				75			ns
Typical Junction Capacitance		CJ	15							PF

Note: 1.Reverse recovery condition IF =0.5A,IR =1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
